Tomcat and Apache Setup

Most Tomcat configurations are a Apache/Tomcat setup, Apache serving up the static content and then passing any JSP to Tomcat to process. Tomcat can be integrated with Apache by using the JK Connector. The JK Connector uses the Apache JSserv Protocol (AJP) for communications between Tomcat and Apache.

The AJP Connector

The AJP protocol is used for communication between Tomcat and Apache, the software modules used on Apache are mod_jk or mod_proxy. Both are native code extension modules written in C/C++, on the Tomcat side the software module is the AJP Connector written in Java.

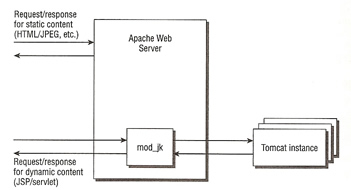

The below diagram shows how the native code Apache module (mod_jk or mod_proxy) works with Tomcat. Apache will receive the incoming JSP or servlet request and using the Apache module will pass this request via the AJP protocol to Tomcat, the response will also be sent back to the Apache server via the AJP protocol.

The Apache JServ Protocol (AJP) uses a binary format for transmitting data between the Web server and Tomcat, a network socket is used for all communication. The AJP packet consist of a packet header and a payload, below is the structure of the packet

As you can see, the binary packet starts with the sequence 0X1234, this is followed by the packet size (2 bytes) and then the actual payload. On the return path the packets are prefixed by AB (the ASCII codes for A and B), the size of the packet and then the payload.

The major feature of this protocol are

One of the ways the AJP protocol reduces latency is by making the Web server reuse already open TCP-level connections with Tomcat. This saves the overhead of opening a new socket connections for each request, its a bit like a connection pool.

The configuration of a AJP Connector is below

AJP Connector example <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />

Tomcat Workers

A worker represents a running instance of Tomcat, a worker serves the requests for all dynamic web components. However you can run multiple instances of Tomcat in a cluster to implement load balancing or site partitioning. Each worker is identified by a unique hostname or a unique IP address and port number. You may what to implement multiple workers for the following reasons

To let Apache know where the Tomcat servers are a file called workers.properties is created detailing this information. I describe this file next

Worker List
Attribute Description
work.list
Describe the workers that are available to Apache via a list
Worker Types
Attribute Description
ajp13
This type of worker represents a running Tomcat instance
lb
used for load balancing
status
display useful information about how the load among the various Tomcat workers is distributed
jni
Used in process, this worker handles the forwarding of requests to in-process Tomcat workers using JNDI
ajp12
worker that support the AJP 1.2 protocol
Other Worker Properties
Attribute Description
worker.test1.type Describes the type of worker (see above for types)
worker.test1.host
The host where the worker Tomcat instance resides
worker.test1.port
The port the AJP 1.3 Connector Tomcat instance is listening on (default 8009)
worker.test1.connection_pool_size
The number of connections used for this worker to be kept in a connection pool
worker.test1.connection_pool_minsize
The minimum number of connections kept in a connection pool
worker.test1.connection_pool_timeout

The number of seconds that connections to this worker should be left in the connection before expiry

worker.test1.mount The contexts paths that are serviced by the worker, you can also use the JkMount directive in the http.conf file
worker.test1.retries
Controls the number of times mod_jk will retry when a worker returns a error
worker.test1.socket_timeout
controls how long a worker will wait for a response on a socket before indicating an error
worker.test1.socket_keepalive indicates if the connection to the worker should be subject to keep alive
worker.test1.lbfactor
An integer indicating the local-balance factor used by the load balancer to distribute work between multiple instances of Tomcat.
Worker Loading Balancing Properties
Attribute Description
worker.bal1.balance_workers A list of workers to load balance between
worker.bal1.lock The type of locking used O (Optimistic) or P (Pessimistic)
worker.bal1.method

can be set to R (Requests), T (Traffic), B (Busy-ness)

R = The worker to use is based on the number of requests forwarded
T = The worker to use is based on the traffic that had been sent to the workers
B = The worker to use is based on the load dividing the number of concurrent requests by the load factor

worker.bal1.secret Sets a default secret password for all workers
worker.bal1.sticky_session
Tells the mod_jk to respect the sessionID in the request and ensures that the same session is always serviced by the same worker instance.
worker.bal1.sticky_session_force This is used for failover
Example
Simple example worker.list = worker1
worker.worker1.type = ajp13
worker.worker1.host = 192.168.0.1
worker.worker1.port = 9009
worker.worker1.connection_pool_size = 5
worker.worker1.connection_pool_timeout = 300
Load Balancing example

worker.list = loadbal1,stat1

worker.tomcatA.type = ajp13
worker.tomcatA.host =192.168.0.1
worker.tomcatA.port = 8009
worker.tomcatA.lbfactor = 10

worker.tomcatB.type = ajp13
worker.tomcatB.host =192.168.0.2
worker.tomcatB.port = 8009
worker.tomcatB.lbfactor = 10

worker.tomcatC.type = ajp13
worker.tomcatC.host =192.168.0.3
worker.tomcatC.port = 8009
worker.tomcatC.lbfactor = 10

worker.loadbal1.type = lb
worker.loadbal1.sticky_seesion = 1
worker.loadbal1.balance_workers = tomcatA, tomcatB, tomcatC

worker.stat1.type= status

Note: if one of your servers is a slow server then lower the lbfactor of that server

There are a number of Apache directives that you can configure in the httpd.conf file

Apache mod_jk Directives
Directive Description
JkWorkerFile tells mod_jk where to find the workers property file
JkLogFile tells mod_jk where to write its logs
JkLogLevel sets the level of logging (info, error or debug)
JkRequestLogFormat specifies the log format, below are the options that you can use

%b or %B bytes transmitted (not counting HTTP headers)
%H request protocol
%m request method
%p port of the server for the request
%r first line of the request
%T request duration
%U URL of the request with query string removed
%v or %V server name
%w name of the tomcat worker
%R the route name of the session

JkMount control the URL matching and forwarding to the Tomcat workers
Example
JkWorkerFile JkWorkerFile   conf/worker.properties
JkLogFile JkLogFile     /var/logs/httpd/mod_jk.log
JkLogLevel JkLogLevel     debug
JkRequestLogFormat JkRequestLogFormat     "%w  %U  %T"
JkMount JkMount     /examples/jsp/* worker1

Configuring SSL for Apache

SSL provides a secure connection between Tomcat and Apache, the steps involved in getting this working are

To make sure that you have openssl installed and the mod_ssl modules installed in Apache run the following

Check foe OpenSSL # openssl version
Check for Apache module mod_ssl # <apache path>/httpd -D DUMP_MODULES

If any of these are not installed then I recommend you download the latest version and install as per the Installation guides.

There are a number of steps to generate a test certificate using OpenSSL

Below are the steps to creating your own cert

step 1

Create a working directory called certs
# mkdir certs
# cd certs

Create a configuration file (myconfig.file) as below

RANDFILE             = ./random.txt
[req]
default_bits         = 1024
default_keyfile      = keyfile.pem
attributes           = req_attributes
distinguished_name   = Datadisk
prompt               = no
output_password      = secret
[Datadisk]
C                    = UK
ST                   = Bucks
L                    = Milton Keynes
O                    = Datadisk
OU                   = IT Consultant
CN                   = 192.168.0.1
emailAddress         = paul.valle@datadisk.co.uk
[req_attributes]
challengePassword    = secret

Create a random file called random.txt put a large number in it

step 2

Now create the certificate

# openssl req -new -out server.csr -config myconfig.file

Two files should have been created server.csr and keyfile.pem

step 3 Now remove the passphrase from the private key

# openssl rsa -in keyfile.pem -out server.key
step 4

Now create a self-signed certificate

# openssl X509 -in server.csr -out server.crt -req -signkey server.key -days 365

Note: in a production environment the certificate signing request file generated (server.csr) is sent to a Certificate Authority and a certificated purchased

step 5 Last but not least copy the server.key and server.crt in to the Apache conf directory

To setup the mod_ssl in Apache you need to perform the following in Apache httpd.conf file

include the httpd-ssl.conf include conf/extra/httpd-ssl.conf
Load the SSL modules LoadModule ssl_module modules/mod_ssl.so
SSLCertificateKeyFile set this attribute to the path to the server.key file
SSLCertificateFile set this attribute to the path to the server.crt file

Once all the above is completed you can now point your browser to the Apache server, hopefully the browser will pop up with a security alert (because of the self-signed certificate).

The only change to make the Apache-Tomcat setup is to change the <VirtualHost> attribute

<VirtualHost> <virtualHost _default_:443>
....
JkWorkersFile ......
JkMount ........
</VirtualHost>

Load Balancing

I will be discussing Tomcat clustering in a later topic will describes a more detailed viewing of load balancing and persistent sessions with-in-memory session replication but for this section I will discuss a basic load balancing solution.

The mod_proxy module can also be used for load balancing but will not be discussed here, the mod_jk module sup[ports load balancing with seamless sessions, it uses a simple round-robin algorithm. Each Tomcat worker is weighted in the worker.properties file which specifies how the request load is distributed between workers.

A seamless session is also known as session affinity or a sticky session. When a request is made any of the Tomcat instances is used, but any subsequent request will be routed to the same Tomcat instance. to keep the same user session.

The following steps are required to set up load balancing in Tomcat

One assumption I will be making here is that all the Tomcat instances will be running on the same server

The first step is to change the CATALINA_HOME variable in each of the startup.bat (Windows) or startup.sh (Unix) instances

CATALINA_HOME

set CATALINA_HOME=c:\apps\tomcatA

Note: the other Tomcat instances would be tomcatB and tomcatC

Now in each Tomcat instance we must set a different AJP Connector port number (server.xml)

AJP Connector port

<Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />

Note: on the other Tomcat instances use ports 8010 and 8011

To avoid startup/shutdown port conflicts we must change each Tomcats worker server port (server.xml)

server port

<Server port="8005" shutdown="SHUTDOWN" debug="0">

Note: on the other Tomcat instances use ports 8006 and 8007

Because all the Tomcat instances will be running in conjunction with the load-balancer worker, it's possible that someone could directly access any of the available workers vioa the default HTTP Connector, by passing the load-balancer path. To avoid this comment out the HTTP Connector configuration of all the Tomcat instances (server.xml)

disable HTTP Connector

<!-- Define
<Connector port="8080"
                 protocol="HTTP/1.1"
                 maxThreads="150"
                 connectionTimeout="20000"
                 redirectPort="8443"
/>
-->

An important step for load balancing is specifying the jvmRoute. The jvmRoute is an attribute of Engine directive that acts as an identifier for that particular Tomcat worker. The attribute must be unique across all Tomcat instances, this unique ID is used in the workers.properties file for identifying each Tomcat worker (server.xml).

jvmRoute

<Engine name="Standalone" defaultHost="localhost" jvmRoute="tomcatA" >

Note: the other Tomcat instances would be tomcatB and tomcatC

You will also need to comment out the Catalina Engine directive (server.xml)

Catalina Engine disable

<!-- Define
  <Engine name="Catalina" defaultHost="localhost" >
-->

Note: the other Tomcat instances would be tomcatB and tomcatC

In Apache's httpd.,conf file you need to add some load balancing directives, also make sure you have the module mod_jk loaded

httpd.conf directives

JkWorkersFile   conf/worker.properties
JkMount         /examples/jsp/*  bal1
JkMount         /jkstatus/  stat1

The last thing is to create the workers property file, i have already discuss this file above.

worker.properties file

worker.list = loadbal1,stat1

worker.tomcatA.type = ajp13
worker.tomcatA.host =192.168.0.1
worker.tomcatA.port = 8009
worker.tomcatA.lbfactor = 10

worker.tomcatB.type = ajp13
worker.tomcatB.host =192.168.0.1
worker.tomcatB.port = 8010
worker.tomcatB.lbfactor = 10

worker.tomcatC.type = ajp13
worker.tomcatC.host =192.168.0.1
worker.tomcatC.port = 8011
worker.tomcatC.lbfactor = 10

worker.loadbal1.type = lb
worker.loadbal1.sticky_seesion = 1
worker.loadbal1.balance_workers = tomcatA, tomcatB, tomcatC

worker.stat1.type= status

To test the load balancer and sticky sessions use the below JSP page (one for each instance), just place it in the webapps/examples/jsp directory.

jsp test page

<%@ page language="java" %>
<html>
  <body>
     <h1><font color="red">Index Page by tomcatA</font></h1>
     <table> align="centre" border="1">
       <tr>
         <td>Session ID</td>
         <td><%= session.getId() %></td>
       </tr>
       <tr>
         <td>Created on </td>
         <td><%= session.getCreationTime() %></td>
       </tr>
     </table>
  </body>
</html>

Use the below URL's for testing, etc. Don't forget to play around with the lbfactor on each Tomcat instance to see what affect it has.

URL's

http://local/examples/jsp/index.jsp
http://localhost/jkstatus
