RAC Administration

I am only going to talk about RAC administration, if you need Oracle administration then see my Oracle section.

It is recommended that the spfile (binary parameter file) is shared between all nodes within the cluster, but it is possible that each instance can have its own spfile. The parameters can be grouped into three categories

Unique parameters These parameters are unique to each instance, examples would be instance_name, thread and undo_tablespace
Identical parameters Parameters in this category must be the same for each instance, examples would be db_name and control_file
Neither unique or identical parameters parameters that are not in any of the above, examples would be db_cache_size, large_pool_size, local_listener and gcs_servers_processes

The main unique parameters that you should know about are

The identical unique parameters that you should know about are below you can use the below query to view all of them

       select name, isinstance_modifiable from v$parameter where isinstance_modifiable = 'false' order by name;

syntax for parameter file <instance_name>.<parameter_name>=<parameter_value>

inst1.db_cache_size = 1000000
*.undo_management=auto
example

alter system set db_2k_cache_size=10m scope=spfile sid='inst1';

Note: use the sid option to specify a particular instance

Starting and Stopping Instances

The srvctl command is used to start/stop an instance, you can also use sqlplus to start and stop the instance

start all instances

srvctl start database -d <database> -o <option>

Note: starts listeners if not already running, you can use the -o option to specify startup/shutdown options, see below for options

force
open
mount
nomount

stop all instances srvctl stop database -d <database> -o <option>

Note: the listeners are not stopped, you can use the -o option to specify startup/shutdown options, see below for options

immediate
abort
normal
transactional
start/stop particular instance srvctl [start|stop] database -d <database> -i <instance>,<instance>

Undo Management

To recap on undo management you can see my undo section, instances in a RAC do not share undo, they each have a dedicated undo tablespace. Using the undo_tablespace parameter each instance can point to its own undo tablespace

undo tablespace instance1.undo_tablespace=undo_tbs1
instance2.undo_tablespace=undo_tbs2

With todays Oracle you should be using automatic undo management, again I have a detailed discussion on AUM in my undo section.

Temporary Tablespace

I have already discussed temporary tablespace's, in a RAC environment you should setup a temporary tablespace group, this group is then used by all instances of the RAC. Each instance creates a temporary segment in the temporary tablespace it is using. If an instance is running a large sort, temporary segments can be reclaimed from segments from other instances in that tablespace.

useful views gv$sort_segment - explore current and maximum sort segment usage statistics (check columns freed_extents, free_requests ,if they grow increase tablespace size)
gv$tempseg_usage - explore temporary segment usage details such as name, SQL, etc
v$tempfile - identify - temporary datafiles being used for the temporary tablespace

Redologs

I have already discussed redologs, in a RAC environment every instance has its own set of redologs. Each instance has exclusive write access to its own redologs, but each instance can read each others redologs, this is used for recovery. Redologs are located on the shared storage so that all instances can have access to each others redologs. The process is a little different to the standard Oracle when changing the archive mode

archive mode (RAC) SQL> alter system set cluster_database=false scope=spfile sid='prod1';
srvctl stop database -d <database>
SQL> startup mount
SQL> alter database archivelog;
SQL> alter system set cluster_database=true scope=spfile sid='prod1';
SQL> shutdown;
srvctl start database -d prod

Flashback

Again I have already talked about flashback, there is no difference in RAC environment apart from the setting up

flashback (RAC) ## Make sure that the database is running in archive log mode
SQL> archive log list

## Setup the flashback
SQL> alter system set cluster_database=false scope=spfile sid='prod1';
SQL> alter system set DB_RECOVERY_FILE_DEST_SIZE=200M scope=spfile;
SQL> alter system set DB_RECOVERY_FILE_DEST='/ocfs2/flashback' scope=spfile;
srvctl stop database -p prod1
SQL> startup mount
SQL> alter database flashback on;
SQL> shutdown;
srvctl start database -p prod1

SRVCTL command

We have already come across the srvctl above, this command is called the server control utility. It can divided into two categories

Oracle stores database configuration in a repository, the configuration is stored in the Oracle Cluster Registry (OCR) that was created when RAC was installed, it will be located on the shared storage. Srvctl uses CRS to communicate and perform startup and shutdown commands on other nodes.

I suggest that you lookup the command but I will provide a few examples

display the registered databases srvctl config database
status

srvctl status database -d <database
srvctl status instance -d <database> -i <instance>
srvctl status nodeapps -n <node>
srvctl status service -d <database>
srvctl status asm -n <node>

stopping/starting

srvctl stop database -d <database>
srvctl stop instance -d <database> -i <instance>,<instance>
srvctl stop service -d <database> [-s <service><service>] [-i <instance>,<instance>]
srvctl stop nodeapps -n <node>
srvctl stop asm -n <node>

srvctl start database -d <database>
srvctl start instance -d <database> -i <instance>,<instance>
srvctl start service -d <database> -s <service><service> -i <instance>,<instance>
srvctl start nodeapps -n <node>
srvctl start asm -n <node>

adding/removing srvctl add database -d <database> -o <oracle_home>
srvctl add instance -d <database> -i <instance> -n <node>
srvctl add service -d <database> -s <service> -r <preferred_list>
srvctl add nodeapps -n <node> -o <oracle_home> -A <name|ip>/network
srvctl add asm -n <node> -i <asm_instance> -o <oracle_home>

srvctl remove database -d <database> -o <oracle_home>
srvctl remove instance -d <database> -i <instance> -n <node>
srvctl remove service -d <database> -s <service> -r <preferred_list>
srvctl remove nodeapps -n <node> -o <oracle_home> -A <name|ip>/network
srvctl asm remove -n <node>

Services

Services are used to manage the workload in Oracle RAC, the important features of services are

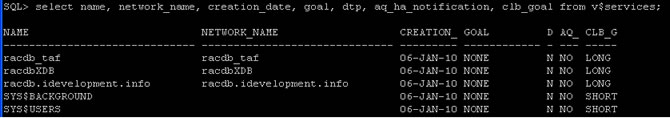

The view v$services contains information about services that have been started on that instance, here is a list from a fresh RAC installation

The table above is described below

You can administer services using the following tools

Two services are created when the database is first installed, these services are running all the time and cannot be disabled.

add srvctl add service -d D01 -s BATCH_SERVICE -r node1,node2 -a node3

Note: the options are describe below

-d - database
-s - the service
-r - the service will running on the these nodes
-a - if nodes in the -r list are not running then run on this node
remove srvctl remove service -d D01 -s BATCH_SERVICE
start srvctl start service -d D01 -s BATCH_SERVICE
stop srvctl stop service -d D01 -s BATCH_SERVICE
status srvctl status service -d D10 -s BATCH_SERVICE
service (example)

## create the JOB class
BEGIN
  DBMS_SCHEDULER.create_job_class(
     job_class_name => 'BATCH_JOB_CLASS',
     service            => 'BATCH_SERVICE');
END;
/

## Grant the privileges to execute the job
grant execute on sys.batch_job_class to vallep;

## create a job associated with a job class
BEGIN
  DBMS_SCHDULER.create_job(
    job_name => 'my_user.batch_job_test',
   job_type => 'PLSQL_BLOCK',
    job_action => SYSTIMESTAMP'
    repeat_interval => 'FREQ=DAILY;',
    job_class => 'SYS.BATCH_JOB_CLASS',
    end_date => NULL,
    enabled => TRUE,
    comments => 'Test batch job to show RAC services');
END;
/

## assign a job class to an existing job
exec dbms_scheduler.set_attribute('MY_BATCH_JOB', 'JOB_CLASS', 'BATCH_JOB_CLASS');

Cluster Ready Services (CRS)

CRS is Oracle's clusterware software, you can use it with other third-party clusterware software, though it is not required (apart from HP True64).

CRS is start automatically when the server starts, you should only stop this service in the following situations

CRS Administration
starting

## Starting CRS using Oracle 10g R1
not possible

## Starting CRS using Oracle 10g R2
$ORA_CRS_HOME/bin/crsctl start crs

stopping ## Stopping CRS using Oracle 10g R1
srvctl stop -d database <database>
srvctl stop asm -n <node>
srvctl stop nodeapps -n <node>
/etc/init.d/init.crs stop

## Stopping CRS using Oracle 10g R2
$ORA_CRS_HOME/bin/crsctl stop crs
disabling/enabling ## stop CRS restarting after a reboot, basically permanent over reboots

## Oracle 10g R1
/etc/init.d/init.crs [disable|enable]

## Oracle 10g R2
$ORA_CRS_HOME/bin/crsctl [disable|enable] crs
checking $ORA_CRS_HOME/bin/crsctl check crs
$ORA_CRS_HOME/bin/crsctl check evmd
$ORA_CRS_HOME/bin/crsctl check cssd
$ORA_CRS_HOME/bin/crsctl check crsd
$ORA_CRS_HOME/bin/crsctl check install -wait 600
Resource Applications (CRS Utilities)
status $ORA_CRS_HOME/bin/crs_stat
$ORA_CRS_HOME/bin/crs_stat -t
$ORA_CRS_HOME/bin/crs_stat -ls
$ORA_CRS_HOME/bin/crs_stat -p

Note:
-t more readable display
-ls permission listing
-p parameters
create profile $ORA_CRS_HOME/bin/crs_profile
register/unregister application $ORA_CRS_HOME/bin/crs_register
$ORA_CRS_HOME/bin/crs_unregister
Start/Stop an application $ORA_CRS_HOME/bin/crs_start
$ORA_CRS_HOME/bin/crs_stop
Resource permissions $ORA_CRS_HOME/bin/crs_getparam
$ORA_CRS_HOME/bin/crs_setparam
Relocate a resource $ORA_CRS_HOME/bin/crs_relocate
Nodes
member number/name olsnodes -n

Note: the olsnodes command is located in $ORA_CRS_HOME/bin
local node name olsnodes -l
activates logging olsnodes -g
Oracle Interfaces
display oifcfg getif
delete oicfg delig -global
set oicfg setif -global <interface name>/<subnet>:public
oicfg setif -global <interface name>/<subnet>:cluster_interconnect
Global Services Daemon Control
starting gsdctl start
stopping gsdctl stop
status gsdctl status
Cluster Configuration (clscfg is used during installation)
create a new configuration clscfg -install

Note: the clscfg command is located in $ORA_CRS_HOME/bin
upgrade or downgrade and existing configuration clscfg -upgrade
clscfg -downgrade
add or delete a node from the configuration clscfg -add
clscfg -delete
create a special single-node configuration for ASM clscfg -local

brief listing of terminology used in the other nodes

clscfg -concepts
used for tracing clscfg -trace
help clscfg -h
Cluster Name Check
print cluster name cemutlo -n

Note: in Oracle 9i the ulity was called "cemutls", the command is located in $ORA_CRS_HOME/bin
print the clusterware version cemutlo -w

Note: in Oracle 9i the ulity was called "cemutls"
Node Scripts
Add Node addnode.sh

Note: see adding and deleting nodes
Delete Node deletenode.sh

Note: see adding and deleting nodes

Oracle Cluster Registry (OCR)

As you already know the OCR is the registry that contains information

The file location is specified during the installation, the file pointer indicating the OCR device location is the ocr.loc, this can be in either of the following

The file contents look something like below, this was taken from my installation

orc.loc ocrconfig_loc=/u02/oradata/racdb/OCRFile
ocrmirrorconfig_loc=/u02/oradata/racdb/OCRFile_mirror
local_only=FALSE

OCR is import to the RAC environment and any problems must be immediately actioned, the command can be found in located in $ORA_CRS_HOME/bin

OCR Utilities
log file $ORA_HOME/log/<hostname>/client/ocrconfig_<pid>.log
checking ocrcheck

Note: will return the OCR version, total space allocated, space used, free space, location of each device and the result of the integrity check
dump contents ocrdump

Note: by default it dumps the contents into a file named OCRDUMPFILE in the current directory
export/import ocrconfig -export <file>

ocrconfig -restore <file>
backup/restore # show backups
ocrconfig -showbackup

# to change the location of the backup, you can even specify a ASM disk
ocrconfig -backuploc <path|+asm>

# perform a backup, will use the location specified by the -backuploc location
ocrconfig -manualbackup

# perform a restore
ocrconfig -restore <file>

# delete a backup
orcconfig -delete <file>

Note: there are many more option so see the ocrconfig man page
add/remove/replace ## add/relocate the ocrmirror file to the specified location
ocrconfig -replace ocrmirror '/ocfs2/ocr2.dbf'

## relocate an existing OCR file
ocrconfig -replace ocr '/ocfs1/ocr_new.dbf'

## remove the OCR or OCRMirror file
ocrconfig -replace ocr
ocrconfig -replace ocrmirror

Voting Disk

The voting disk as I mentioned in the architecture is used to resolve membership issues in the event of a partitioned cluster, the voting disk protects data integrity.

querying crsctl query css votedisk
adding crsctl add css votedisk <file>
deleting crsctl delete css votedisk <file>
